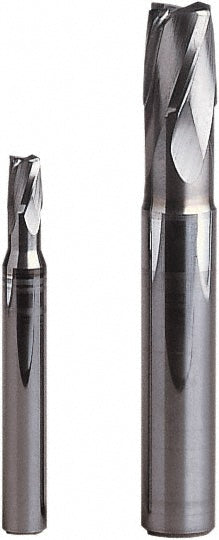

0.1575" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 00019462
MFR# 00019462Series JH120
$129.17List $165.66
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingMEGA-64
Description
The Seco 00019462 is a 0.1575 4-flute Solid Carbide corner radius end mill with a MEGA-64 finish for longer tool life. Suited for hard material. Series JH120.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishMEGA-64
Coolant throughNo
Corner radius0.0157
Corner radius tolerance-0.01 to 0.01 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut1.0000
Length typeShort
Material applicationHard Material
Material removal typeRoughing
Mill diameter0.1575
Mill diameter tolerance-0.02 to -0.03 mm
Neck diameter0.1460
Number of flutes4
Overall length (mm)50.00
Primary workpiece materialHard Material
Reach length0.3543
Shank diameter (mm)6.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
