Seco

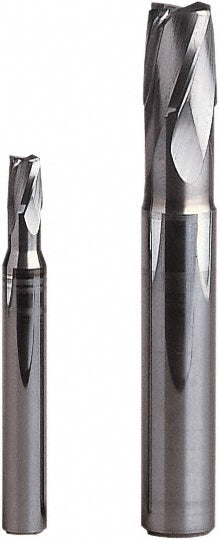

0.4724" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 00019501

MFR# 00019501Series JH120

$265.41List $340.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingMEGA-64

Description

The Seco 00019501 is a 0.4724 4-flute Solid Carbide corner radius end mill with a MEGA-64 finish for longer tool life. Suited for hard material. Series JH120.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishMEGA-64

Coolant throughNo

Corner radius0.0472

Corner radius tolerance-0.01 to 0.01 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleMedium

Length of cut0.8750

Length typeShort

Material applicationHard Material

Material removal typeRoughing

Mill diameter0.4724

Mill diameter tolerance-0.02 to -0.03 mm

Neck diameter0.4490

Number of flutes4

Overall length (mm)80.00

Primary workpiece materialHard Material

Reach length1.1811

Shank diameter (mm)12.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
