Seco

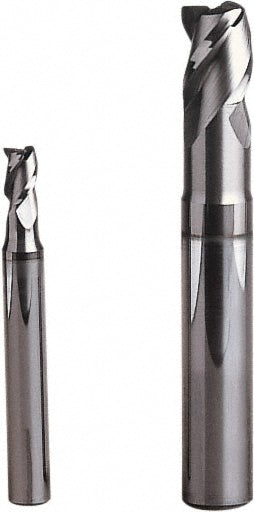

0.4724" 3-Flute Solid Carbide Corner Radius End Mill, MEGA - Seco 00020169

MFR# 00020169Series JH910

$301.50List $373.68 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingMEGA

Description

The Seco 00020169 is a 0.4724 3-flute Solid Carbide corner radius end mill with a MEGA finish for longer tool life. Suited for steel, stainless steel, cast iron, high temperature alloy. Series JH910.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishMEGA

Coolant throughNo

Corner radius0.0394

Corner radius tolerance-0.01 to 0.01 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut0.7000

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloy

Material removal typeRoughing

Mill diameter0.4724

Mill diameter tolerance-0.02 to -0.03 mm

Neck diameter0.4490

Number of flutes3

Overall length (mm)80.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High Temperature Alloy

Reach length1.1811

Shank diameter (mm)12.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
