Seco

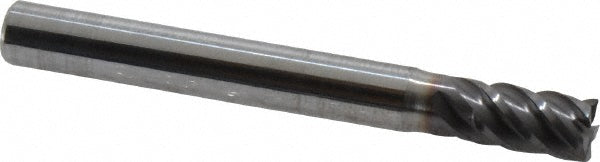

0.2362" 5-Flute Solid Carbide Corner Radius End Mill, MEGA - Seco 00022026

MFR# 00022026Series JH930

$144.65List $179.28 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingMEGA

Description

The Seco 00022026 is a 0.2362 5-flute Solid Carbide corner radius end mill with a MEGA finish for longer tool life. Suited for steel, cast iron, high temperature alloy, hard material. Series JH930.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishMEGA

Coolant throughNo

Corner radius0.0079

Corner radius tolerance-0.05 to 0.05 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut1.0000

Length typeShort

Material applicationSteel; Cast Iron; Superalloy; Hard Material

Material removal typeRoughing

Mill diameter0.2362

Mill diameter tolerance-0.02 to -0.04 mm

Neck diameter0.2200

Number of flutes5

Overall length (mm)55.00

Primary workpiece materialSteel; Cast Iron; High Temperature Alloy; Hard Material

Reach length (mm)15.00

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
