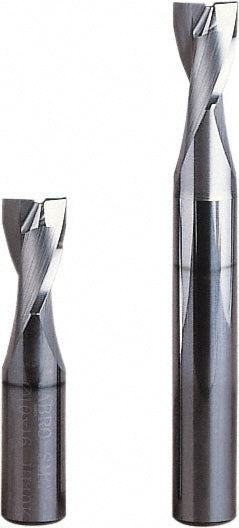

0.2362" 2-Flute Solid Carbide Corner Radius End Mill, HEMI - Seco 00022250

Seco

0.2362" 2-Flute Solid Carbide Corner Radius End Mill, HEMI - Seco 00022250

MFR# 00022250Series JH40

$142.03List $176.03 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingHEMI

Description

The Seco 00022250 is a 0.2362 2-flute Solid Carbide corner radius end mill with a HEMI finish for longer tool life. Suited for non-ferrous metal. Series JH40.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHEMI
Coolant throughNo
Corner radius0.0039
Corner radius tolerance-0.10 to 0.10 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut3.0000
Length typeRegular
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter0.2362
Mill diameter tolerance-0.02 to -0.04 mm
Neck diameter0.2240
Number of flutes2
Overall length (mm)65.00
Primary workpiece materialNon-Ferrous Metal
Reach length0.7087
Shank diameter (mm)6.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
