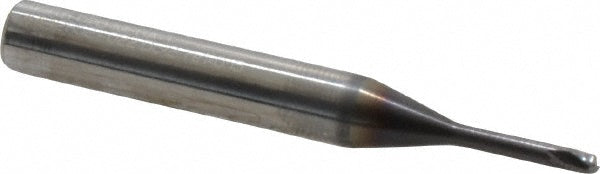

0.0787" 2-Flute Solid Carbide Corner Radius End Mill, MEGA-T - Seco 00023316

Seco

0.0787" 2-Flute Solid Carbide Corner Radius End Mill, MEGA-T - Seco 00023316

MFR# 00023316Series JM920

$130.71List $162.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingMEGA-T

Description

The Seco 00023316 is a 0.0787 2-flute Solid Carbide corner radius end mill with a MEGA-T finish for longer tool life. Series JM920.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishMEGA-T
Coolant throughNo
Corner radius0.0059
Corner radius tolerance+0.02000 to -0.02000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut0.0866
Mill diameter0.0787
Mill diameter tolerance-0.01/-0.02 mm
Neck diameter0.0750
Number of flutes2
Overall length (mm)50.00
Reach length (mm)12.00
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
