Seco

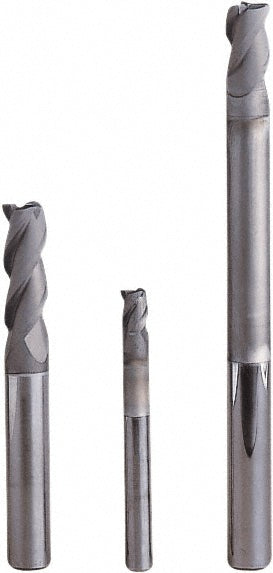

0.1181" 3-Flute Solid Carbide Corner Radius End Mill, Diamond - Seco 00023464
MFR# 00023464Series JD630
$149.00List $184.68
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingDiamond
Description
The Seco 00023464 is a 0.1181 3-flute Solid Carbide corner radius end mill with a Diamond finish for longer tool life. Series JD630.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Corner radius0.0118
Corner radius tolerance+0.05000 to -0.05000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut0.7500
Material removal typeRoughing
Mill diameter0.1181
Mill diameter tolerance-0.02 to -0.04 mm
Neck diameter0.1140
Number of flutes3
Overall length (mm)40.00
Reach length0.5906
Shank diameter (mm)3.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
