Seco

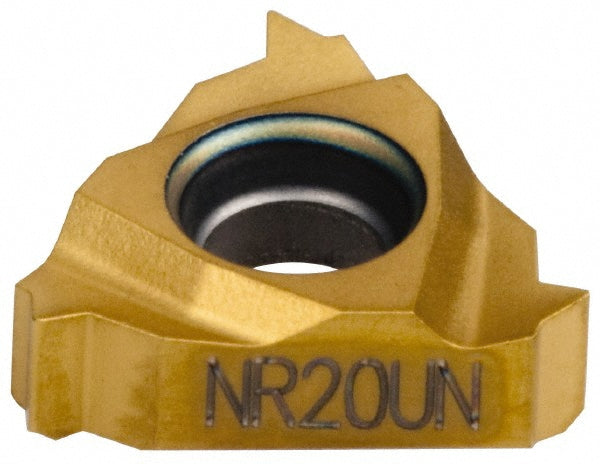

7/32" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00023503
MFR# 00023503Series Snap Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00023503 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0040
Cutting edge to theoretical edge length0.0270
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in7/32
Insert handRight Hand
Insert materialSolid Carbide
Insert style09NR
Manufacturer gradeCP500
Material gradeMicrograin
Primary workpiece materialUniversal
StandardsISO
Thickness0.0945
Threads per inch20
Thread standardUN
Thread typeInternal
