Seco

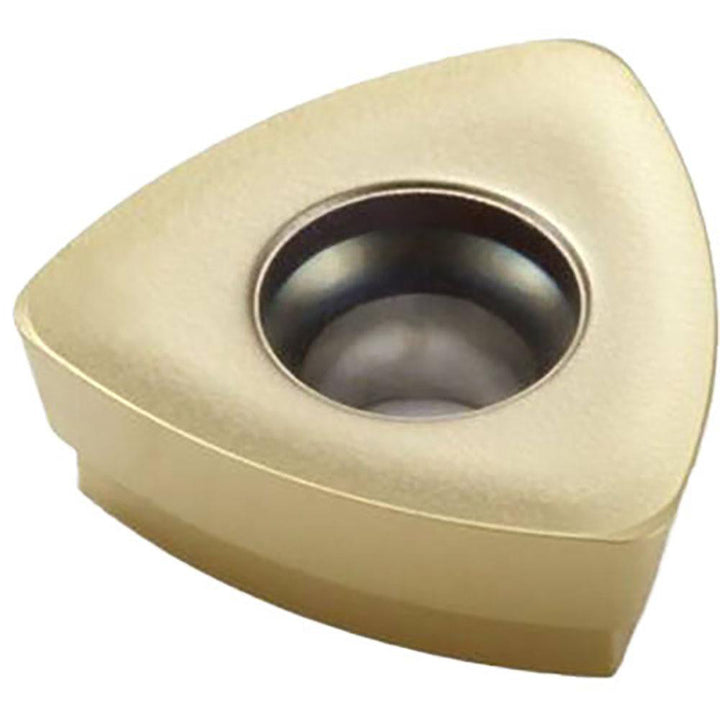

218.19-080T-M04 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00023598
MFR# 00023598ISO/ANSI# 218.19-080T-M04Cat# 218.19-080T-M04Series 218.19-080
$24.42List $31.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00023598 is a 218.19-080T-M04 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.19-080T-M04
Chip breakerM04
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius in1/64
Cutter series compatibilityR218.19-16; R217.21-R080
Cutting edge styleT-Land
Hole diameter0.1024
Included angle degree60
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size080
Insert size code080T
Insert style218.19
Iso code218.19-080T-M04
Length0.2165
Length range0.0000 to 0.3200
Manufacturers catalog number218.19-080T-M04
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0240
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle12.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.2165
