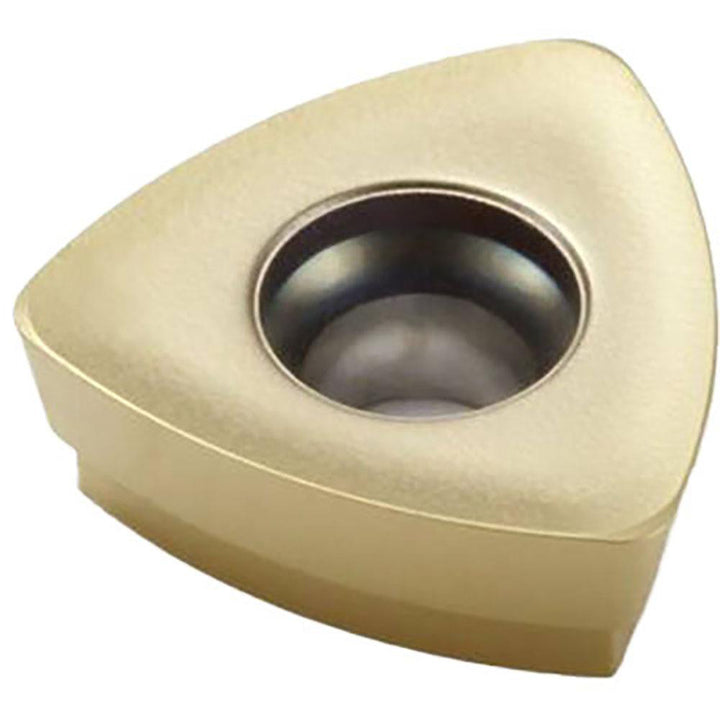

218.19-100T-M06 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00023601
MFR# 00023601ISO/ANSI# 218.19-100T-M06Cat# 218.19-100T-M06Series 218.19-100
$26.70List $34.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00023601 is a 218.19-100T-M06 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.19-100T-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Convex radius0.3937
Corner radius in1/32
Cutter series compatibilityR218.19-20; R217.21-R100
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree60
Inscribed circle0.2780
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size100
Insert size code100T
Insert style218.19
Iso code218.19-100T-M06
Length0.2780
Length range0.0000 to 0.3200
Manufacturers catalog number218.19-100T-M06
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0290
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle12
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width0.2780
