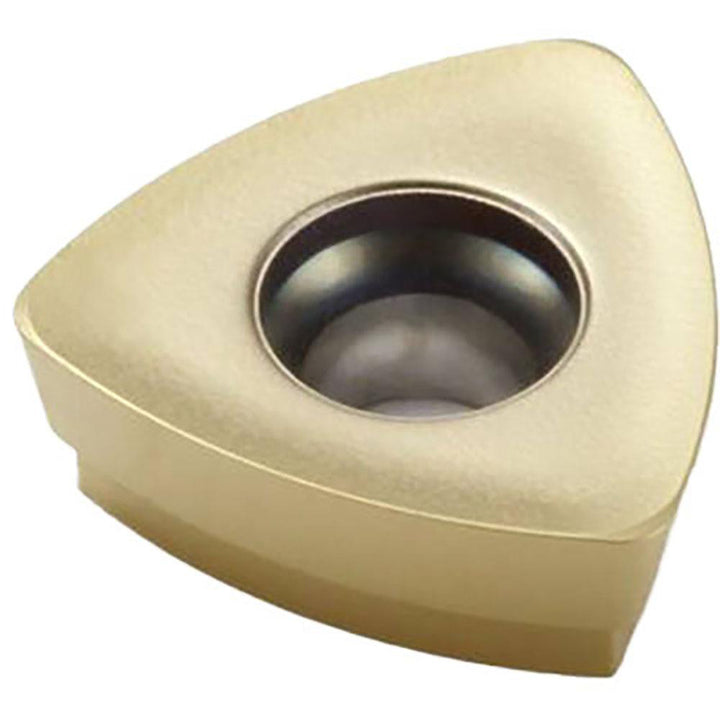

218.19-160T-04-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00023605

Seco

218.19-160T-04-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00023605

MFR# 00023605ISO/ANSI# 218.19-160T-04-M08Cat# 218.19-160T-04-M08Series 218.19-160

$31.32List $40.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00023605 is a 218.19-160T-04-M08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi code218.19-160T-04-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Convex radius0.6299
Corner radius in3/64
Cutter series compatibilityR218.19-32; R217.21-R160; R220.21-R160
Cutting edge styleT-Land
Hole diameter0.1575
Included angle degree60
Inscribed circle0.4402
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size160
Insert size code160T-04
Insert style218.19
Iso code218.19-160T-04-M08
Length0.4402
Length range0.4000 to 0.4500
Manufacturers catalog number218.19-160T-04-M08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle12
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4402
