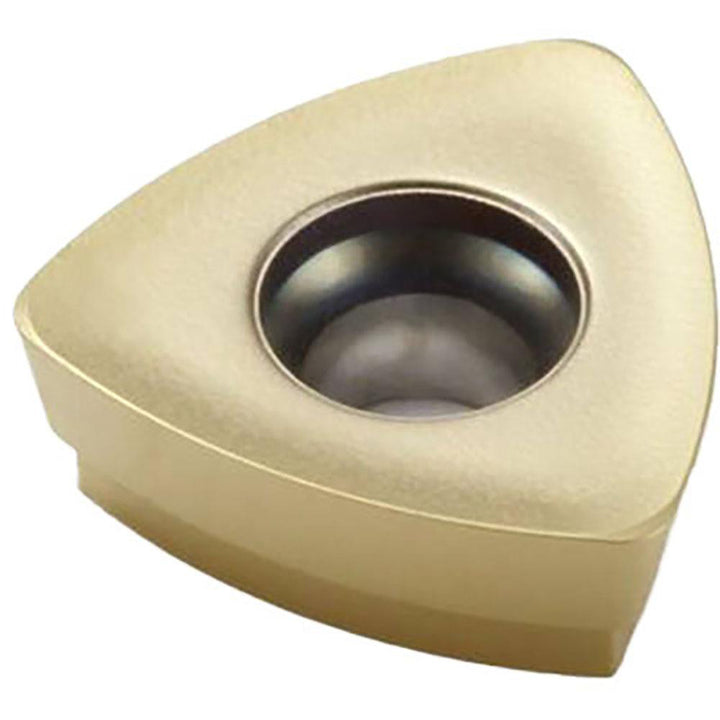

218.19-200T-05-M10 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00023607
MFR# 00023607ISO/ANSI# 218.19-200T-05-M10Cat# 218.19-200T-05-M10Series 218.19-200
$34.95List $44.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00023607 is a 218.19-200T-05-M10 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.19-200T-05-M10
Chip breakerM10
Coating finishTiAlN
Coating processPVD
Convex radius0.7874
Corner radius0.0236
Cutter series compatibilityR218.19-40
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size200
Insert size code200T-05
Insert style218.19
Iso code218.19-200T-05-M10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number218.19-200T-05-M10
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.7870
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle12
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width in1/2
