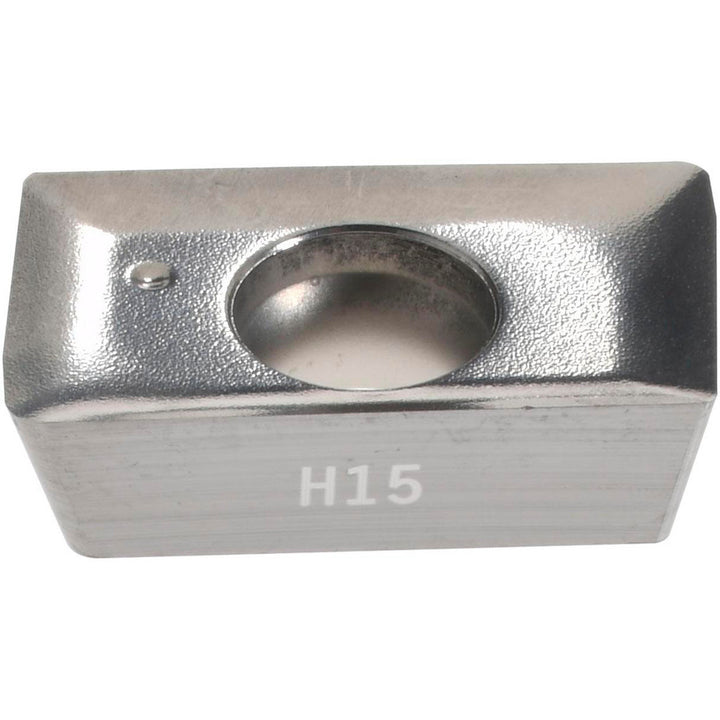

APEX160408FR-E08 Solid Carbide Insert, Grade H15 - Seco 00023612
MFR# 00023612ISO/ANSI# APEX160408FR-E08Cat# APEX160408FR-E08Series APEX-16
$39.42List $49.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeH15
MaterialSolid Carbide
Description
The Seco 00023612 is a APEX160408FR-E08 solid carbide indexable insert, grade H15. Suited for non-ferrous metal.
Specifications
Ansi codeAPEX160408FR-E08
Chip breakerE08
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6476
Cutting edge styleSharp
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160408
Insert styleAPEX
Iso codeAPEX160408FR-E08
Length0.6476
Length range0.6000 to 0.6500
Manufacturers catalog numberAPEX160408FR-E08
Manufacturer gradeH15
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle11.00
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
