Seco

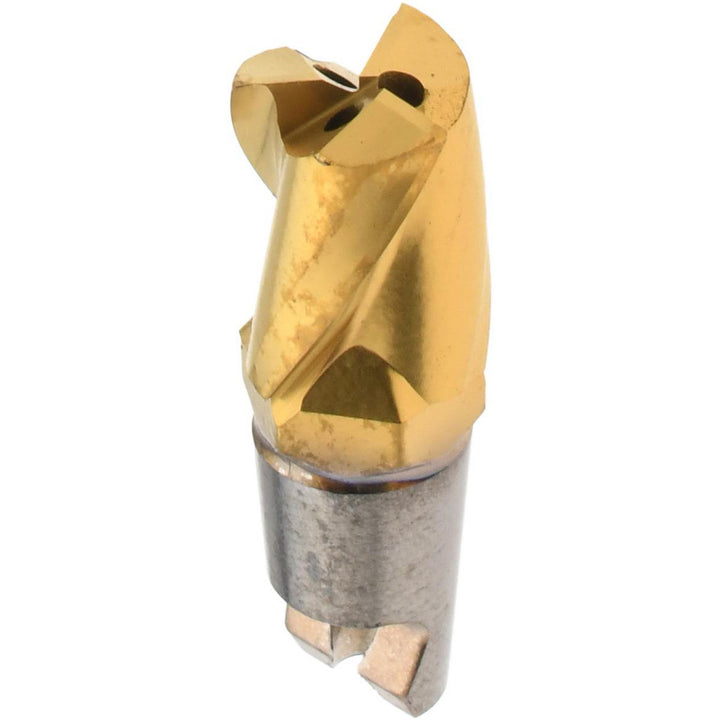

Carbide Insert, Grade F40M, TiAlN - Seco 00023713
MFR# 00023713Series MM06
$83.70
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeF40M
CoatingTiAlN
Description
The Seco 00023713 is a carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0
ChipbreakerM02
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.0080
Cutting diameter0.2280
Cutting width0.228
Extension from holder in0.3900
Functional length0.3900
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size0.228-R008A30
Lead angle90
Length of cut0.2950
Manufacturers catalog number00023713
Manufacturer gradeF40M
Material gradeP10; P20; P30; P40; P50; N10; N20; M10; M20; M30; M40; S10; S20
Maximum depth of cut0.2950
Milling tip full descriptionMM06-0.228-R008A30-M02
Milling tip styleMM06
Milling tip typeSlotting
Number of flutes3
Overall length0.39
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
