Seco

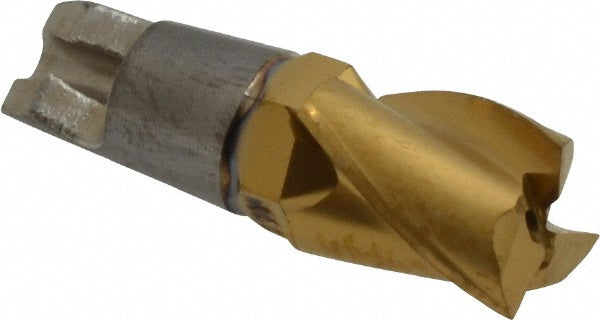

Carbide Insert, Grade F30M, TiAlN - Seco 00023714
MFR# 00023714Series MM08
$98.08
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeF30M
CoatingTiAlN
Description
The Seco 00023714 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0degree
ChipbreakerE03
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.0000
Cutting diameter0.3150
Cutting width0.3150in
Extension from holder in0.5120
Functional length0.5120
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size0.315-A30
Lead angle90
Length of cut0.3940in
Manufacturers catalog number00023714
Manufacturer gradeF30M
Material gradeP20; P30; H10
Maximum depth of cut0.3940
Milling tip full descriptionMM08-0.315-A30-E03
Milling tip styleMM08
Milling tip typeSlotting
Number of flutes3
Overall length0.5120in
Primary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
