Seco

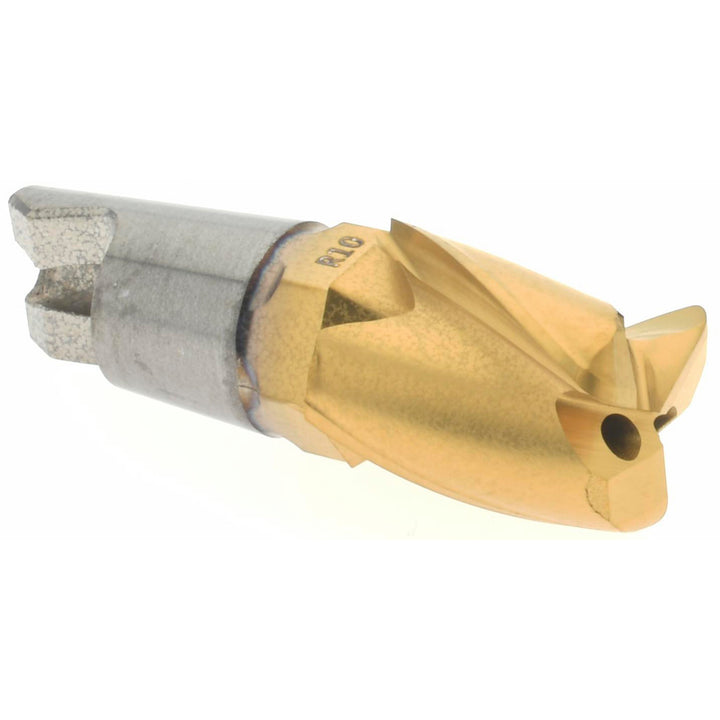

Carbide Insert, Grade F40M, TiAlN - Seco 00023717
MFR# 00023717Series MM08
$98.08
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeF40M
CoatingTiAlN
Description
The Seco 00023717 is a carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.0390
Cutting diameter0.3150
Cutting width0.315
Extension from holder in0.5120
Functional length0.5120
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size0.315-R040A30
Lead angle90
Length of cut0.3940
Manufacturers catalog number00023717
Manufacturer gradeF40M
Material gradeP10; P20; P30; P40; P50; N10; N20; M10; M20; M30; M40; S10; S20
Maximum depth of cut0.3940
Milling tip full descriptionMM08-0.315-R040A30-M03
Milling tip styleMM08
Milling tip typeSlotting
Number of flutes3
Overall length0.512
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
