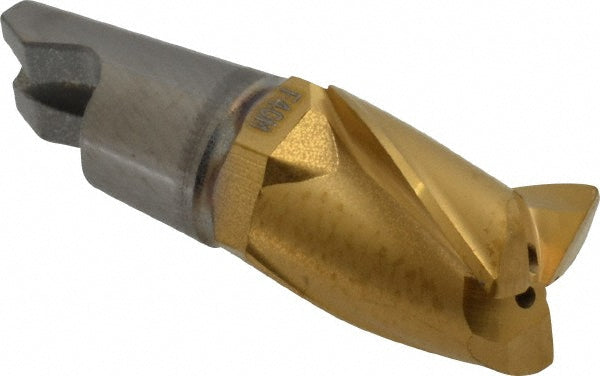

Carbide Insert, Grade F40M, TiAlN - Seco 00023724

Seco

Carbide Insert, Grade F40M, TiAlN - Seco 00023724

MFR# 00023724Series MM12

$139.50
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeF40M
CoatingTiAlN

Description

The Seco 00023724 is a carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerM04
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.0200
Cutting diameter0.4720
Cutting width0.472
Extension from holder in0.7830
Functional length0.7830
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size0.472-R020A30
Lead angle90
Length of cut0.6040
Manufacturers catalog number00023724
Manufacturer gradeF40M
Material gradeP10; P20; P30; P40; P50; N10; N20; M10; M20; M30; M40; S10; S20
Maximum depth of cut0.6040
Milling tip full descriptionMM12-0.472-R020A30-M04
Milling tip styleMM12
Milling tip typeSlotting
Number of flutes3
Overall length0.783
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
