Seco

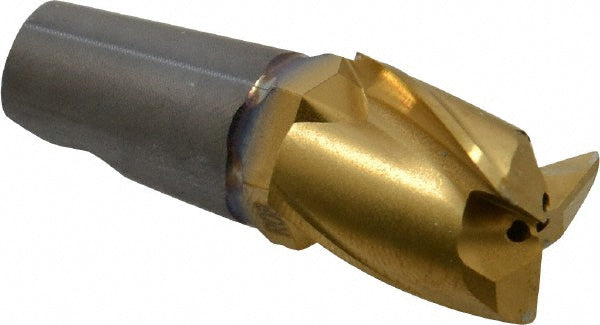

Carbide Insert, Grade F40M, TiAlN - Seco 00023732
MFR# 00023732Series MM16
$263.97
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
GradeF40M
CoatingTiAlN
Description
The Seco 00023732 is a carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerM06
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.0310
Cutting width0.6250in
Extension from holder in0.9650
Functional length0.9650
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size0.625-R031A30
Lead angle90
Length of cut in3/4in
Manufacturers catalog number00023732
Manufacturer gradeF40M
Material gradeP10; P20; P30; P40; P50; N10; N20; M10; M20; M30; M40; S10; S20
Maximum depth of cut (mm)19.1
Milling tip full descriptionMM16-0.625-R031A30-M06
Milling tip styleMM16
Milling tip typeSlotting
Number of flutes3
Overall length0.9650in
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
