Seco

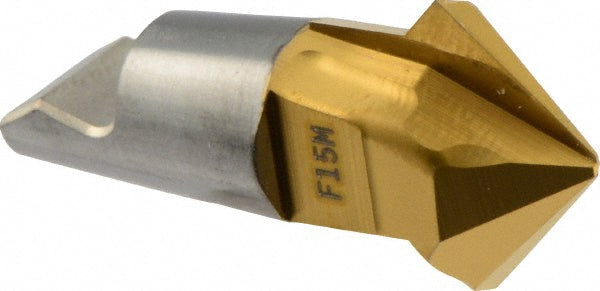

Carbide Insert, Grade F15M, TiAlN - Seco 00023793
MFR# 00023793Series MM12
$222.33
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF15M
CoatingTiAlN
Description
The Seco 00023793 is a carbide indexable insert, grade F15M, TiAlN coated. Suited for stainless steel.
Specifications
Chamfer angle45degree
ChipbreakerM02
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.0390
Cutting width0.6300in
Extension from holder in0.6770
Functional length0.6770
Included angle degree90
Insert handRight Hand
Insert size0.630-D4520P
Lead angle45
Length of cut0.2950in
Manufacturers catalog number00023793
Manufacturer gradeF15M
Material gradeH10
Maximum depth of cut0.2950
Milling tip full descriptionMM12-0.630-D4520P-M02
Milling tip styleMM12
Milling tip typeChamfer
Number of flutes2
Overall length0.6770in
Primary workpiece materialStainless Steel
StandardsANSI
Tool materialCarbide
