Seco

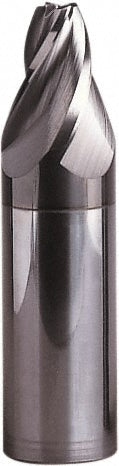

3-Flute Solid Carbide Tapered End Mill, MEGA - Seco 00029154
MFR# 00029154Series HK
$229.16List $284.03
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingMEGA
Description
The Seco 00029154 is a 3-flute Solid Carbide tapered end mill with a MEGA finish for longer tool life. Series HK.
Specifications
CentercuttingNo
Coating finishMEGA
Coolant throughNo
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.5906
Mill diameter (mm)4.00
Number of flutes3
Overall length (mm)65.00
Shank diameter (mm)12.00
Shank diameter toleranceh5
Small end diameter0.1575
Small end diameter tolerance+0.1/0 mm
Taper angle per side15.00
Tir maximum0.000800
