Seco
3-Flute Solid Carbide Tapered End Mill, MEGA - Seco 00029168
MFR# 00029168Series HK
$289.98List $353.17
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingMEGA
Description

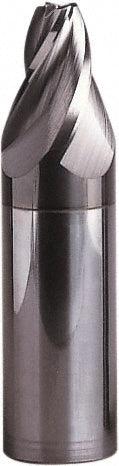

The Seco 00029168 is a 3-flute Solid Carbide tapered end mill with a MEGA finish for longer tool life. Series HK.
Specifications
CentercuttingNo
Coating finishMEGA
Coolant throughNo
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.3937
Mill diameter (mm)2.50
Number of flutes3
Overall length (mm)75.00
Shank diameter (mm)10.00
Shank diameter toleranceh5
Small end diameter0.0984
Small end diameter tolerance+0.1/0 mm
Taper angle per side20.00
Tir maximum0.000800
