Seco

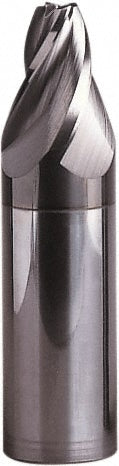

3-Flute Solid Carbide Tapered End Mill - Seco 00029208
MFR# 00029208Series HK
$266.63List $330.48
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The Seco 00029208 is a 3-flute Solid Carbide tapered end mill. Series HK.
Specifications
CentercuttingNo
Coolant throughNo
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.3937
Mill diameter (mm)2.50
Number of flutes3
Overall length (mm)75.00
Shank diameter (mm)10.00
Shank diameter toleranceh5
Small end diameter0.0984
Small end diameter tolerance+0.1/0 mm
Taper angle per side30.00
Tir maximum0.000800
