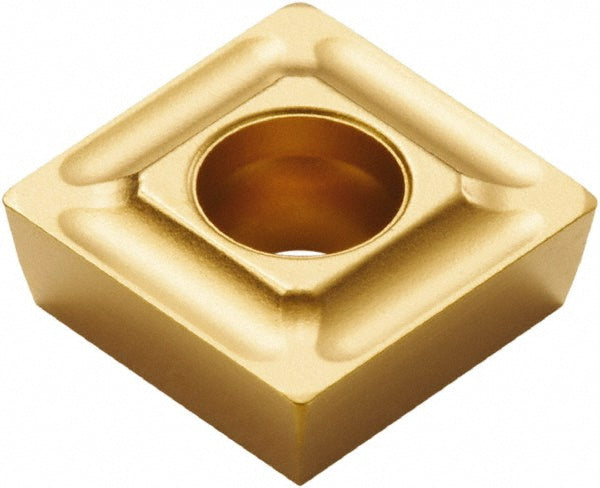

SPMX060204-75 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00029220
MFR# 00029220ISO/ANSI# SPMX060204-75Cat# SPMX060204-75Series SPMX-06
$18.78List $24.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00029220 is a SPMX060204-75 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSPMX060204-75
Chip breaker75
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityR215.49-3; R335.16-3
Cutting edge effective length0.2500
Cutting edge styleT-Land
Hole diameter0.1024
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060204
Insert styleSPMX
Iso codeSPMX060204-75
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberSPMX060204-75
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
