Seco

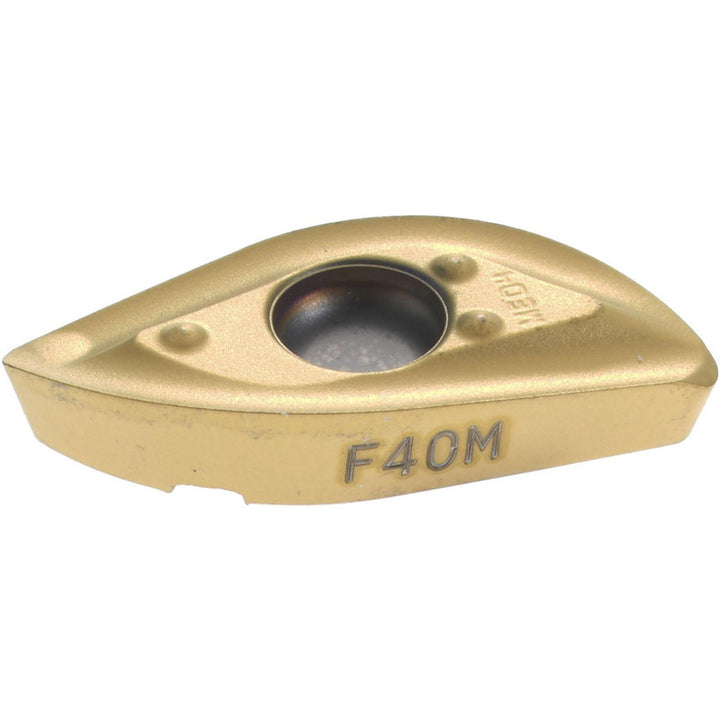

218.20-080ER-ME04 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00030428
MFR# 00030428ISO/ANSI# 218.20-080ER-ME04Cat# 218.20-080ER-ME04Series 218.20-080
$54.59List $68.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00030428 is a 218.20-080ER-ME04 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.20-080ER-ME04
Chip breakerME04
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityR218.20-16; R218.20-0.625; R218.24-R080
Cutting edge styleHoned
Hole diameter0.1142
Included angle degree90
Inscribed circle0.2709
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size080
Insert size code080ER
Insert style218.20
Iso code218.20-080ER-ME04
Length0.6157
Length range0.6000 to 0.6500
Manufacturers catalog number218.20-080ER-ME04
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5510
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.1264
Thickness range0.1250 to 0.1500
Width0.2709
