Seco

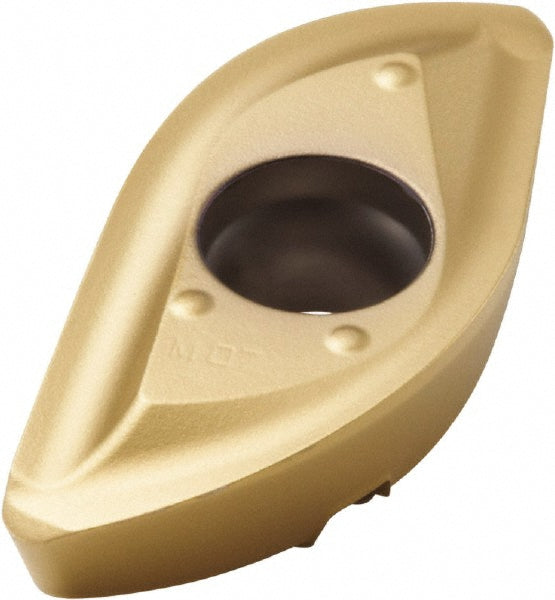

218.20-125ER-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00030451
MFR# 00030451ISO/ANSI# 218.20-125ER-M07Cat# 218.20-125ER-M07Series 218.20-125
$59.87List $76.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00030451 is a 218.20-125ER-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.20-125ER-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius0.4921
Cutter series compatibilityR218.20-25; R218.20-01.00
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4228
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size125
Insert size code125ER
Insert style218.20
Iso code218.20-125ER-M07
Length0.9638
Length range0.9000 to 1.0000
Manufacturers catalog number218.20-125ER-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.8660
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle1
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.1988
Thickness range0.1850 to 0.2000
Width0.4228
