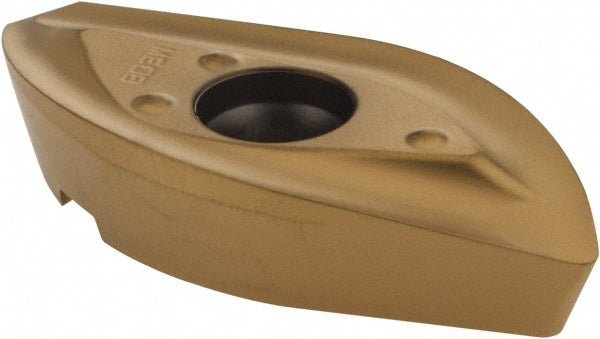

218.20-160ER-ME08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00030462
MFR# 00030462ISO/ANSI# 218.20-160ER-ME08Cat# 218.20-160ER-ME08Series 218.20-160
$74.77List $95.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeBall Nose
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00030462 is a 218.20-160ER-ME08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.20-160ER-ME08
Chip breakerME08
Coating finishTiAlN
Coating processPVD
Corner radius0.6299
Cutter series compatibilityR218.20-32; R218.20-01.25
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size160
Insert size code160ER
Insert style218.20
Iso code218.20-160ER-ME08
Length1.2051
Length range1.0000+
Manufacturers catalog number218.20-160ER-ME08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut1.1020
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width in1/2
