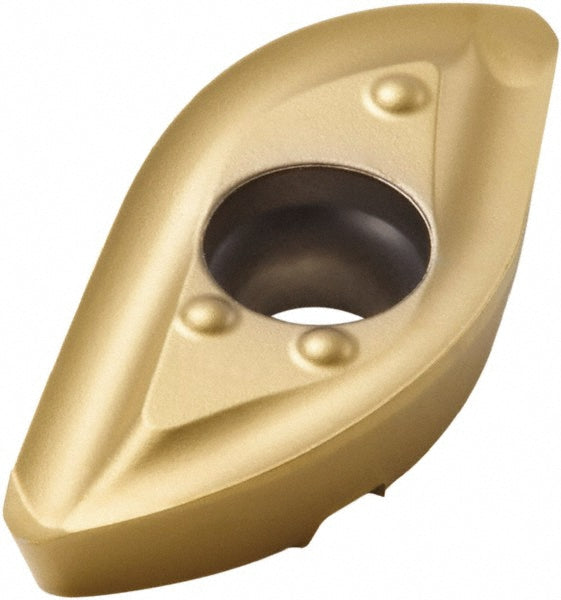

218.20-250ER-ME12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00030482
MFR# 00030482ISO/ANSI# 218.20-250ER-ME12Cat# 218.20-250ER-ME12Series 218.20-250
$138.10List $177.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC25/32
ShapeBall Nose
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00030482 is a 218.20-250ER-ME12 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.20-250ER-ME12
Chip breakerME12
Coating finishTiAlN
Coating processPVD
Corner radius in63/64
Cutter series compatibilityR218.20-50
Cutting edge styleHoned
Hole diameter0.2717
Included angle degree90
Inscribed circle in25/32
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size250
Insert size code250ER
Insert style218.20
Iso code218.20-250ER-ME12
Length1.8831
Length range1.0000+
Manufacturers catalog number218.20-250ER-ME12
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut1.7320
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.4000
Thickness range0.3500 to 0.5000
Width in25/32
