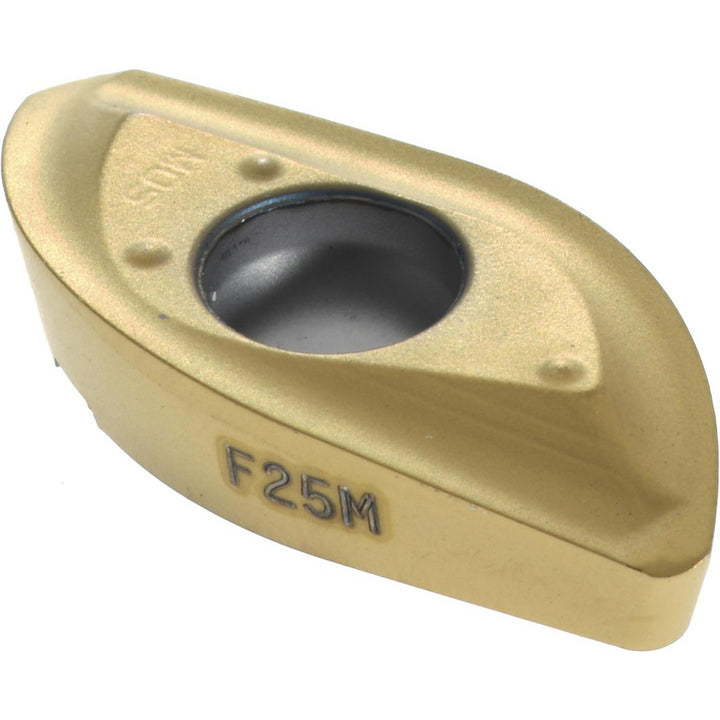

218.20-0.375ER-M05 Solid Carbide Insert, Grade F25M, TiAlN - Seco 00033061

Seco

218.20-0.375ER-M05 Solid Carbide Insert, Grade F25M, TiAlN - Seco 00033061

MFR# 00033061ISO/ANSI# 218.20-0.375ER-M05Cat# 218.20-0.375ER-M05Series 218.20-0.375

$45.72List $58.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeF25M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00033061 is a 218.20-0.375ER-M05 solid carbide indexable insert, grade F25M, TiAlN coated.

Specifications

Ansi code218.20-0.375ER-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Corner radius in3/8
Cutter series compatibilityR218.20-0.750
Cutting edge styleHoned
Hole diameter0.1378
Included angle degree90
Inscribed circle0.3224
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.375
Insert size code0.375ER
Insert style218.20
Iso code218.20-0.375ER-M05
Length0.7331
Length range0.7000 to 0.9000
Manufacturers catalog number218.20-0.375ER-M05
Manufacturer gradeF25M
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeMedium Grain
Maximum depth of cut0.6690
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle3
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.1516
Thickness range0.1500 to 0.1750
Width0.3224
