Seco

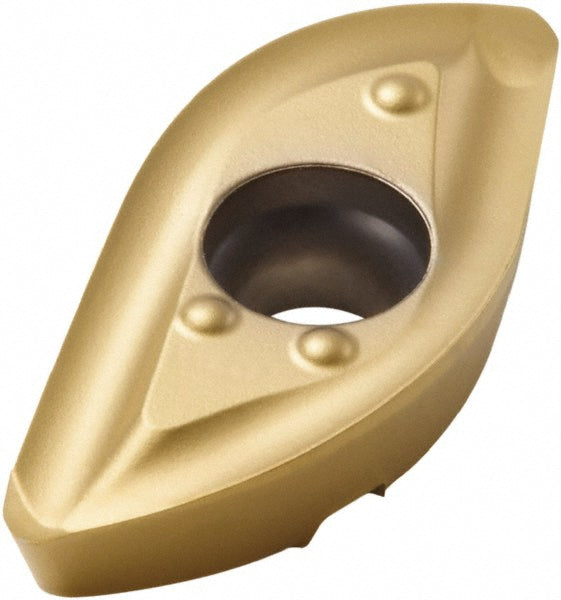

218.20-0.750ER-ME10 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00033067
MFR# 00033067ISO/ANSI# 218.20-0.750ER-ME10Cat# 218.20-0.750ER-ME10Series 218.20-0.750
$125.97List $158.76
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 4 — minimum order 4
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00033067 is a 218.20-0.750ER-ME10 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code218.20-0.750ER-ME10
Chip breakerME10
Coating finishTiAlN
Coating processPVD
Corner radius in3/4
Cutter series compatibilityR218.20-01.50
Cutting edge styleHoned
Hole diameter0.2283
Included angle degree90
Inscribed circle0.5953
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.750
Insert size code0.750ER
Insert style218.20
Iso code218.20-0.750ER-ME10
Length1.4346
Length range1.0000+
Manufacturers catalog number218.20-0.750ER-ME10
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut1.3390
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle6
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.3002
Thickness range0.2500 to 0.3500
Width0.5953
