Seco

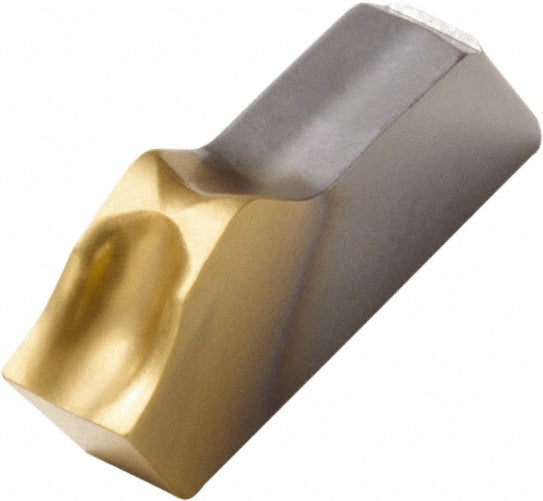

Solid Carbide Insert, Grade CP600, TiAlN - Seco 00033115
MFR# 00033115Series 150.10
$20.81List $26.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP600
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00033115 is a solid carbide indexable insert, grade CP600, TiAlN coated. Suited for universal.
Specifications
Chipbreaker14
Coating finishTiAlN
Coating processPVD
Corner radius0.0060
Cutting tool applicationParting
Cutting width0.0550
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1.4
Lead angle0
Lead angle directionNeutral
Manufacturer gradeCP600
Material gradeC5
Multi use toolYes
Overall length0.3540
Primary workpiece materialUniversal
Single or double endSingle
