Seco

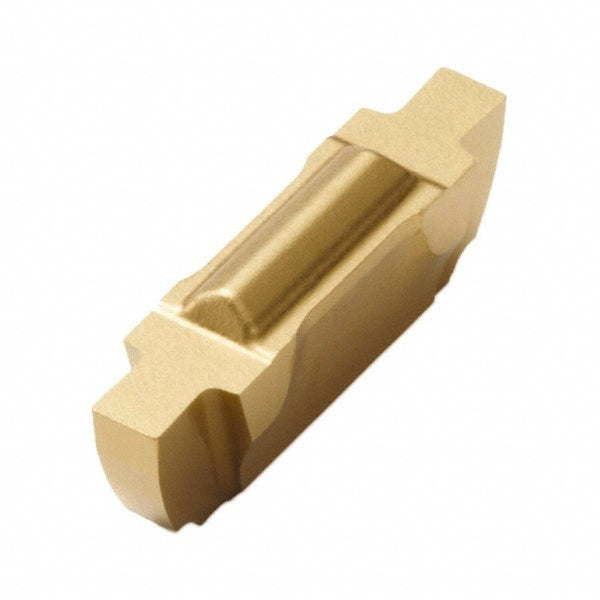

Solid Carbide Insert, Grade CP500, TiAlN/TiN - Seco 00034028
MFR# 00034028Series MDT
$57.86List $72.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Seco 00034028 is a solid carbide indexable insert, grade CP500, TiAlN/TiN coated.
Specifications
ChipbreakerFG
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0060
Cutting height0.1570
Full radiusNo
Full radius insertNo
Insert handNeutral
Insert length0.4860
Insert materialSolid Carbide
Insert styleLCGA
Manufacturer gradeCP500
Material gradeMicrograin
Maximum cutting width0.0850
Relief angle7
Single or double endDouble
Standard lock ring size0.0790
StyleLCGA130301-0215-FG
