Seco

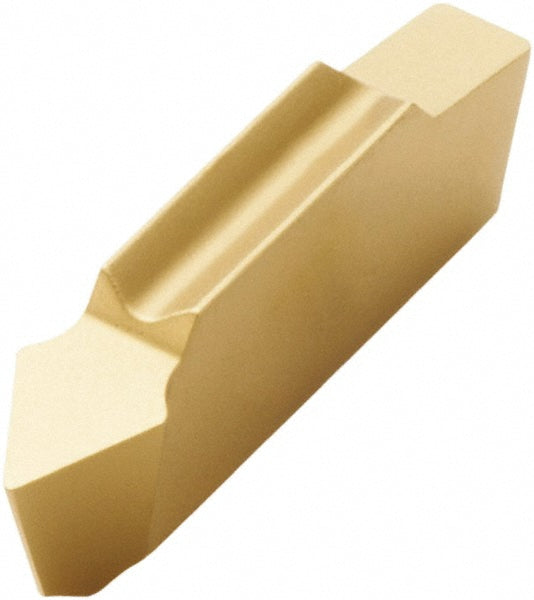

Carbide Insert, Grade CP500 - Seco 00034046
MFR# 00034046Series MDT
$35.87List $46.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
Description
The Seco 00034046 is a carbide indexable insert, grade CP500.
Specifications
ChipbreakerFG
Coating processPVD
Corner radius0.0070
External pitch1.75-3.00 mm; 14-8 TPI
Finish coatingCoated
Included angle55
Insert handNeutral
Insert materialCarbide
Insert size1603
Insert styleLCGN
Manufacturer gradeCP500
Material gradeMicrograin
Thickness0.177
Thread typeInternal; External
