Seco
Solid Carbide Insert, Grade 890 - Seco 00034660
MFR# 00034660Series MDT
$41.52List $53.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade890
MaterialSolid Carbide
Description

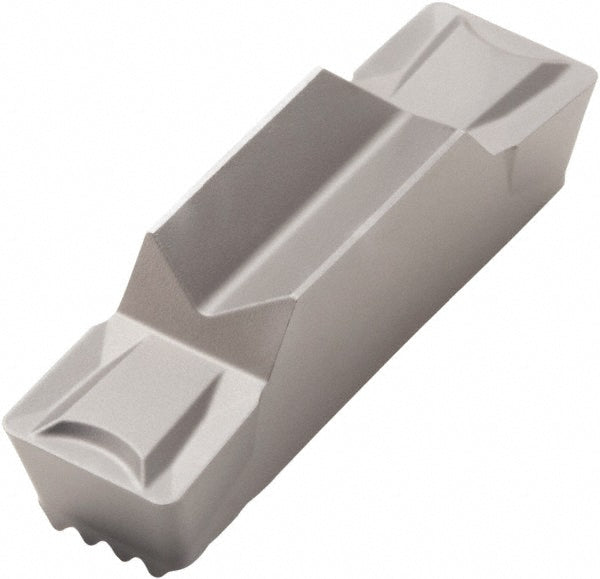

The Seco 00034660 is a solid carbide indexable insert, grade 890. Suited for superalloy, titanium.
Specifications
ChipbreakerFT
Corner radius0.0310
Cutting height0.1770
Full radiusNo
Full radius insertNo
Insert handNeutral
Insert length0.6300
Insert materialSolid Carbide
Insert size code160608
Insert styleLCMF
Manufacturer grade890
Material gradeMicrograin
Maximum cutting width0.2360
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Single or double endDouble
StyleLCMF160608-0600-FT
