Seco

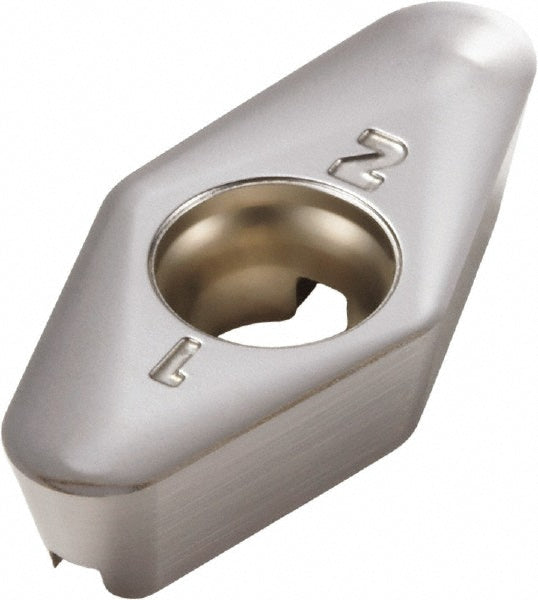

VPGX220631FN-E06 Solid Carbide Insert, Grade H15 - Seco 00035402
MFR# 00035402ISO/ANSI# VPGX220631FN-E06Cat# VPGX220631FN-E06Series VPGX-22
$51.61List $66.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH15
MaterialSolid Carbide
Description
The Seco 00035402 is a VPGX220631FN-E06 solid carbide indexable insert, grade H15. Suited for non-ferrous metal.
Specifications
Ansi codeVPGX220631FN-E06
Chip breakerE06
Coating processUncoated
Corner radius in1/8
Cutter series compatibilityR217.97-V22; R220.97-V22
Cutting edge effective length0.5591
Cutting edge styleSharp
Hole diameter0.2303
Included angle degree35
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size22
Insert size code220631
Insert styleVPGX
Iso codeVPGX220631FN-E06
Length1.1181
Length range1.0000+
Manufacturers catalog numberVPGX220631FN-E06
Manufacturer gradeH15
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Maximum depth of cut0.5591
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle11.00
ShapeDiamond
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
