Seco

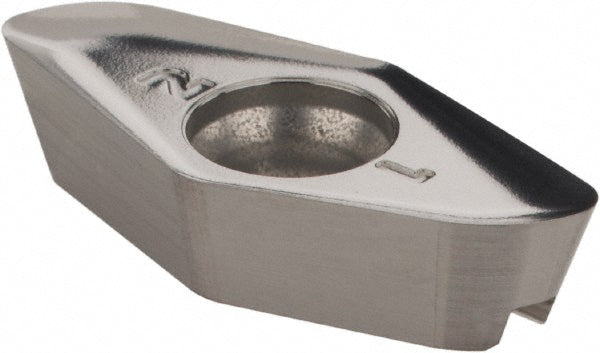

VPGX220616ER-E10 Solid Carbide Insert, Grade H25 - Seco 00035408
MFR# 00035408ISO/ANSI# VPGX220616ER-E10Cat# VPGX220616ER-E10Series VPGX-22
$51.61List $66.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH25
MaterialSolid Carbide
Description
The Seco 00035408 is a VPGX220616ER-E10 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeVPGX220616ER-E10
Chip breakerE10
Coating processUncoated
Corner radius0.0630
Cutter series compatibilityR217.97-V22; R220.97-V22
Cutting edge effective length0.5394
Cutting edge styleHoned
Hole diameter0.2303
Included angle degree35
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size22
Insert size code220616
Insert styleVPGX
Iso codeVPGX220616ER-E10
Length1.0787
Length range1.0000+
Manufacturers catalog numberVPGX220616ER-E10
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.5394
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle11
Secondary workpiece materialSuperalloys & Titanium
ShapeDiamond
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
