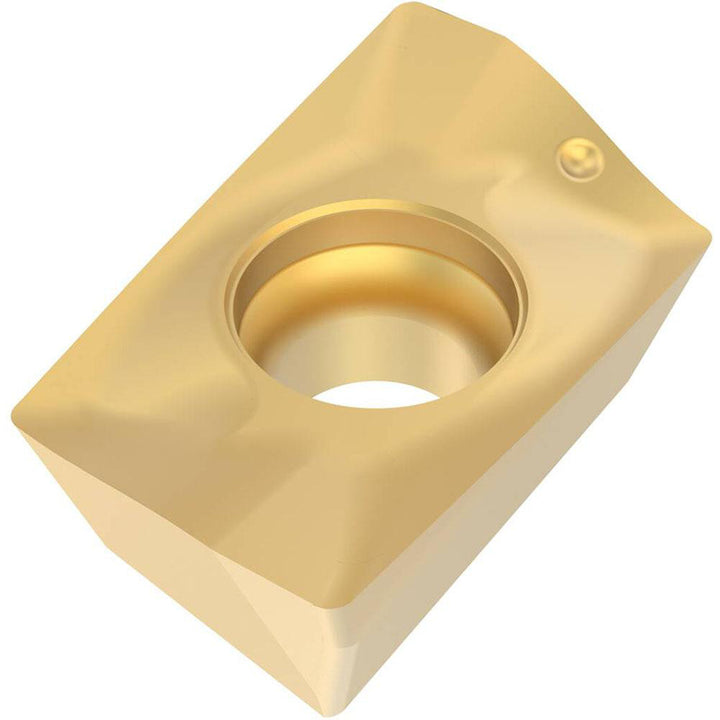

XOEX120408R-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00035445
MFR# 00035445ISO/ANSI# XOEX120408R-M07Cat# XOEX120408R-M07Series XOEX-12
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00035445 is a XOEX120408R-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXOEX120408R-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4724
Cutting edge styleHoned
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOEX
Iso codeXOEX120408R-M07
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberXOEX120408R-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20.3
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3228
