Seco

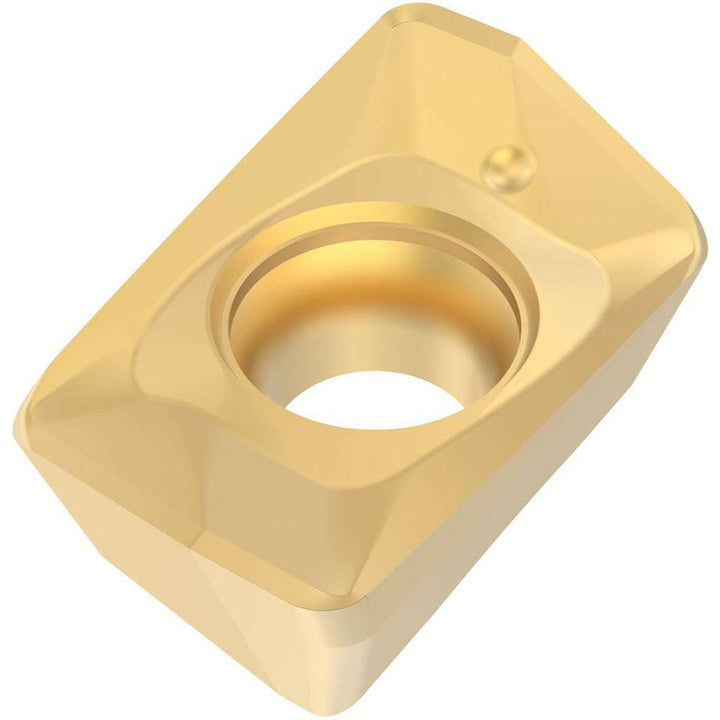

XOMX060208R-M05 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00035449
MFR# 00035449ISO/ANSI# XOMX060208R-M05Cat# XOMX060208R-M05Series XOMX-06
$20.46List $26.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00035449 is a XOMX060208R-M05 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXOMX060208R-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-06
Cutting edge effective length0.2165
Cutting edge styleHoned
Hole diameter0.0748
Included angle degree90
Inscribed circle0.1614
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060208
Insert styleXOMX
Iso codeXOMX060208R-M05
Length0.2165
Length range0.0000 to 0.3200
Manufacturers catalog numberXOMX060208R-M05
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20.2
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.0965
Thickness range0.0000 to 0.1000
Width0.1614
