Seco

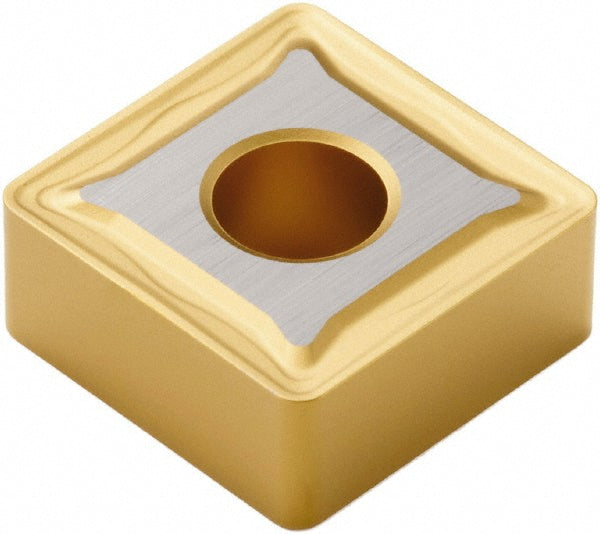

SNMG190612-M5 Carbide Insert, Grade TP40, TiC - Seco 00038091
MFR# 00038091ISO/ANSI# SNMG643-M5Series SNMG-M5
$40.49List $51.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeTP40
MaterialCarbide
CoatingTiC
Description
The Seco 00038091 is a SNMG190612-M5 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3118
Included angle90degree
Industry standard numberSNMG643-M5
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612-M5
Lead angle90degree
Length range0.7000 - 10.0000
Manufacturers catalog number00038091
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.7008
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
