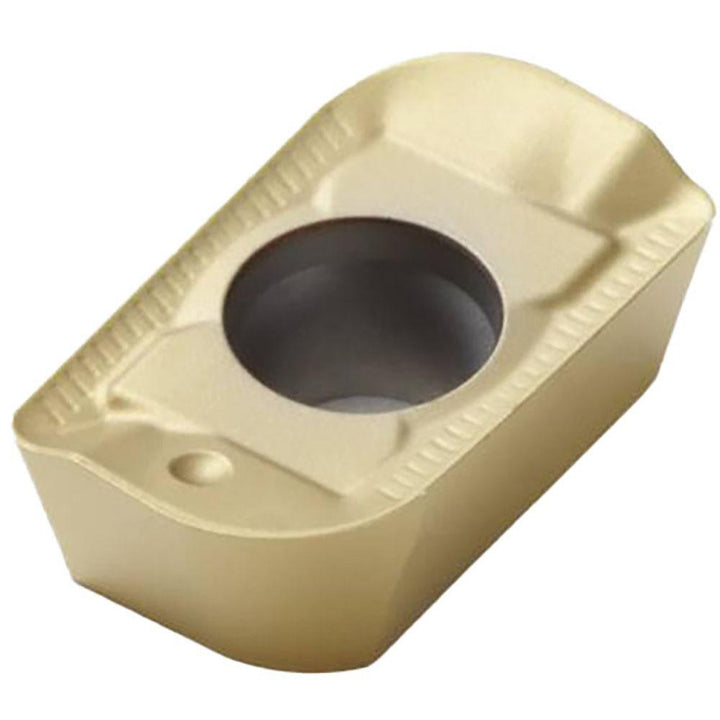

APMX160408TR-ME11 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00038202

Seco

APMX160408TR-ME11 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00038202

MFR# 00038202ISO/ANSI# APMX160408TR-ME11Cat# APMX160408TR-ME11Series APMX-16

$27.37List $35.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00038202 is a APMX160408TR-ME11 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPMX160408TR-ME11
Chip breakerME11
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree85
Inscribed circle0.3713
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160408
Insert styleAPMX
Iso codeAPMX160408TR-ME11
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberAPMX160408TR-ME11
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle24
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2268
Thickness range0.2200 to 0.2350
Width0.3713
