Seco

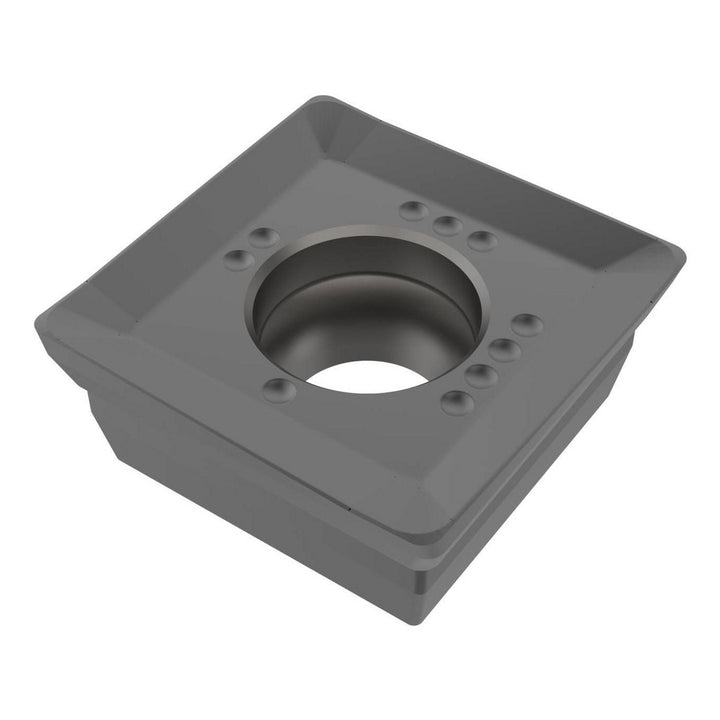

SONX09T304TR-M10 Solid Carbide Insert, Grade T350M, TiCN - Seco 00039079
MFR# 00039079ISO/ANSI# SONX09T304TR-M10Cat# SONX09T304TR-M10Series SONX-09
$20.71List $26.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeT350M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 00039079 is a SONX09T304TR-M10 solid carbide indexable insert, grade T350M, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeSONX09T304TR-M10
Chip breakerM10
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR220.99-09
Cutting edge effective length0.3760
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle0.3760
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T304
Insert styleSONX
Iso codeSONX09T304TR-M10
Length0.3760
Length range0.3200 to 0.4000
Manufacturers catalog numberSONX09T304TR-M10
Manufacturer gradeT350M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Rake angle19
Relief angle15.00
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3760
