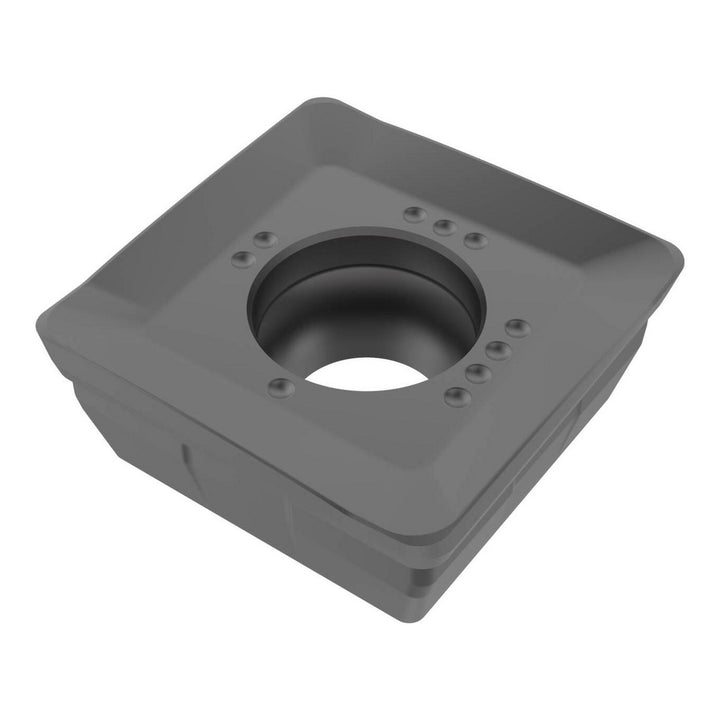

SONX120508TR-M12 Solid Carbide Insert, Grade T350M, TiCN - Seco 00039080
MFR# 00039080ISO/ANSI# SONX120508TR-M12Cat# SONX120508TR-M12Series SONX-12
$25.68List $32.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeT350M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 00039080 is a SONX120508TR-M12 solid carbide indexable insert, grade T350M, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeSONX120508TR-M12
Chip breakerM12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR220.99-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleSONX
Iso codeSONX120508TR-M12
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSONX120508TR-M12
Manufacturer gradeT350M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.4331
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Rake angle16
Relief angle15.00
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in13/64
Thickness range0.2000 to 0.2200
Width in1/2
