Seco

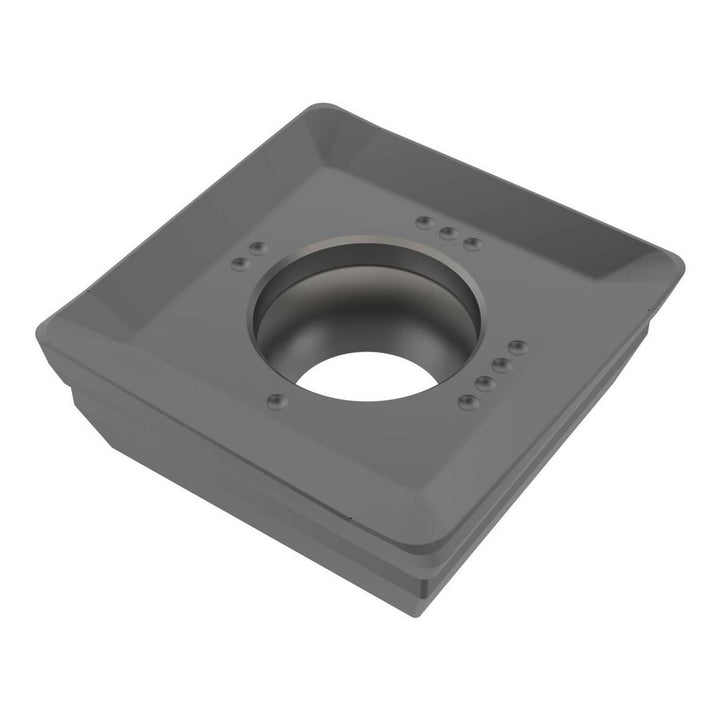

SONX150508TR-M14 Solid Carbide Insert, Grade T350M, TiCN - Seco 00039081
MFR# 00039081ISO/ANSI# SONX150508TR-M14Cat# SONX150508TR-M14Series SONX-15
$31.40List $40.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeT350M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 00039081 is a SONX150508TR-M14 solid carbide indexable insert, grade T350M, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeSONX150508TR-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR220.99-15
Cutting edge effective length0.6220
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle0.6220
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code150508
Insert styleSONX
Iso codeSONX150508TR-M14
Length0.6220
Length range0.6000 to 0.6500
Manufacturers catalog numberSONX150508TR-M14
Manufacturer gradeT350M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Rake angle22
Relief angle15.00
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6220
