Seco

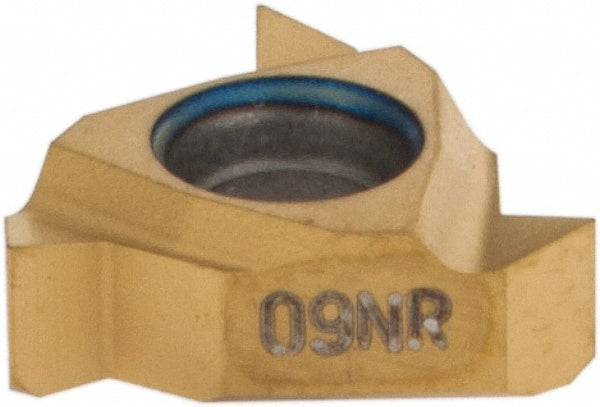

7/32" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00039473
MFR# 00039473Series Snap Tap
$43.37List $54.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00039473 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0030
Included angle60
Inscribed circle in7/32
Insert handRight Hand
Insert materialSolid Carbide
Insert size code09
Insert style09NR
Manufacturer gradeCP500
Material gradeMicrograin
Pitch (mm)0.50 to 1.50
Primary workpiece materialUniversal
StandardsISO
Thickness0.0945
Threads per inch48-16
Thread typeInternal
