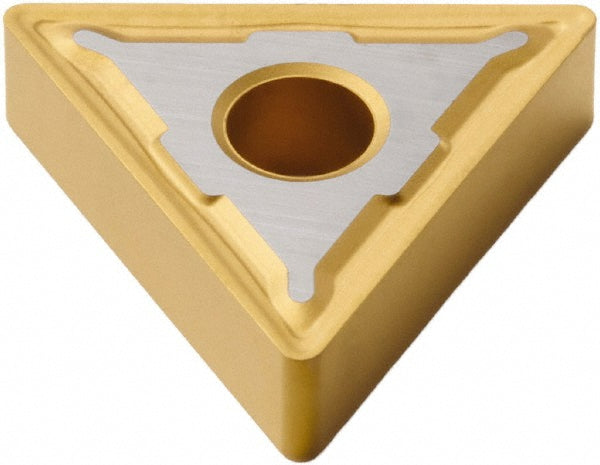

TNMG160308-M5 Carbide Insert, Grade TP40, TiC - Seco 00039761

Seco

TNMG160308-M5 Carbide Insert, Grade TP40, TiC - Seco 00039761

MFR# 00039761ISO/ANSI# TNMG322-M5Series TNMG-M5

$14.75List $18.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP40
MaterialCarbide
CoatingTiC

Description

The Seco 00039761 is a TNMG160308-M5 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.

Specifications

Chip breakerM5
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG322-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160308-M5
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number00039761
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
