Seco

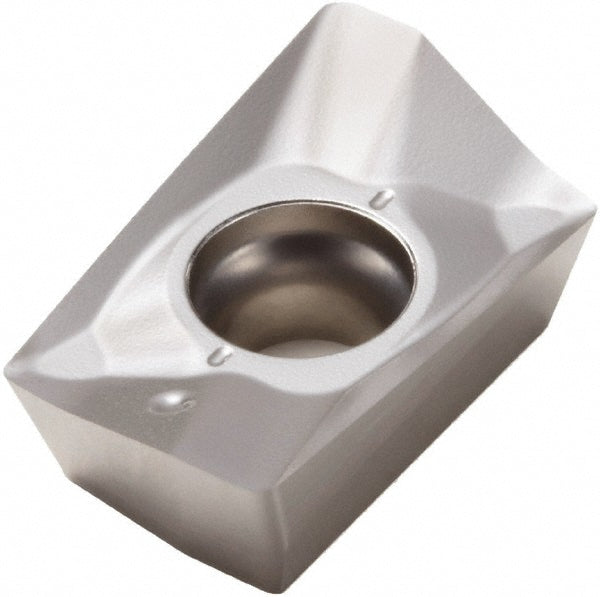

XOEX180616FR-E10 Solid Carbide Insert, Grade H25 - Seco 00039915
MFR# 00039915ISO/ANSI# XOEX180616FR-E10Cat# XOEX180616FR-E10Series XOEX-18
$36.80List $47.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH25
MaterialSolid Carbide
Description
The Seco 00039915 is a XOEX180616FR-E10 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeXOEX180616FR-E10
Chip breakerE10
Coating processUncoated
Corner radius0.0630
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleSharp
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180616
Insert styleXOEX
Iso codeXOEX180616FR-E10
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOEX180616FR-E10
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle30
Relief angle15
Secondary workpiece materialSuperalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
