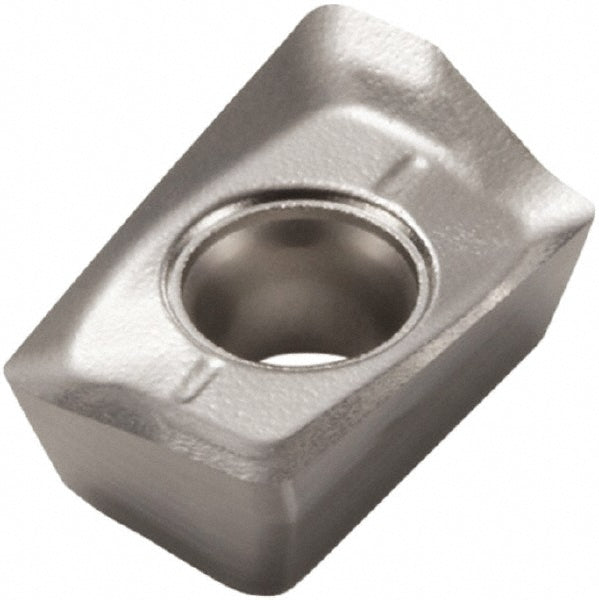

XOEX060202FR-E03 Solid Carbide Insert, Grade H15 - Seco 00039970
MFR# 00039970ISO/ANSI# XOEX060202FR-E03Cat# XOEX060202FR-E03Series XOEX-06
$28.45List $35.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH15
MaterialSolid Carbide
Description
The Seco 00039970 is a XOEX060202FR-E03 solid carbide indexable insert, grade H15. Suited for non-ferrous metal.
Specifications
Ansi codeXOEX060202FR-E03
Chip breakerE03
Coating processUncoated
Corner radius in1/128
Cutter series compatibilityR217.69-06
Cutting edge effective length0.2362
Cutting edge styleSharp
Hole diameter0.0787
Included angle degree90
Inscribed circle0.1614
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060202
Insert styleXOEX
Iso codeXOEX060202FR-E03
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberXOEX060202FR-E03
Manufacturer gradeH15
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle30.6
Relief angle15.00
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.0965
Thickness range0.0000 to 0.1000
Width0.1614
