Seco

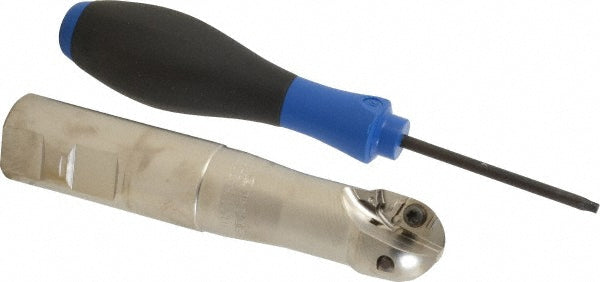

1" Indexable End Mills - Seco 00040024
MFR# 00040024Series R218.20-Inch
$706.53List $750.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 00040024 indexable end mills. Series R218.20-Inch.
Specifications
Compatible insert style218.20-125.R
Coolant throughYes
Cutting diameter in1
Head length2.0000
Insert holding methodScrew
Maximum depth of cut0.8600
Maximum ramping angle45
Maximum rpm16900
Number of ball nose inserts2
Number of flutes2
Number of inserts2
Overall length5.0400
Shank diameter in1
Shank typeWeldon Flat
Tapered neckYes
Toolholder styleR218.20
Tool applicationMilling
Weldon flatYes
