Seco

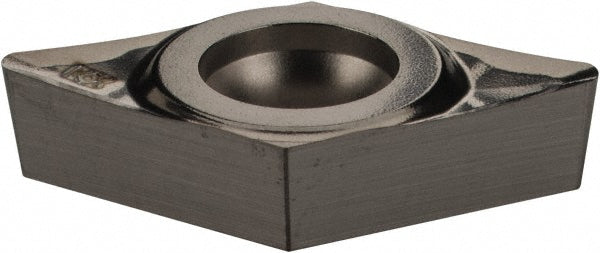

DCGT11T308F-AL Carbide Insert, Grade KX - Seco 00040400
MFR# 00040400ISO/ANSI# DCGT32.52F-ALSeries DCGT-AL
$20.71List $26.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKX
MaterialCarbide
Description
The Seco 00040400 is a DCGT11T308F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCGT32.52F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.52
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T308F-AL
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number00040400
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.4252
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
