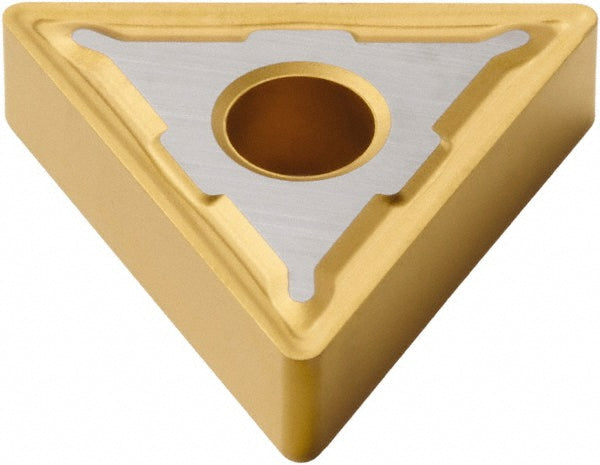

TNMG220408-M5 Carbide Insert, Grade TP40, TiC - Seco 00040535

Seco

TNMG220408-M5 Carbide Insert, Grade TP40, TiC - Seco 00040535

MFR# 00040535ISO/ANSI# TNMG432-M5Series TNMG-M5

$22.40List $28.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP40
MaterialCarbide
CoatingTiC

Description

The Seco 00040535 is a TNMG220408-M5 carbide indexable insert, grade TP40, TiC coated. Suited for steel, stainless steel.

Specifications

Chip breakerM5
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-M5
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00040535
Manufacturer gradeTP40
Material gradeP40; M35; M40
Maximum depth of cut0.7874
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
