Seco

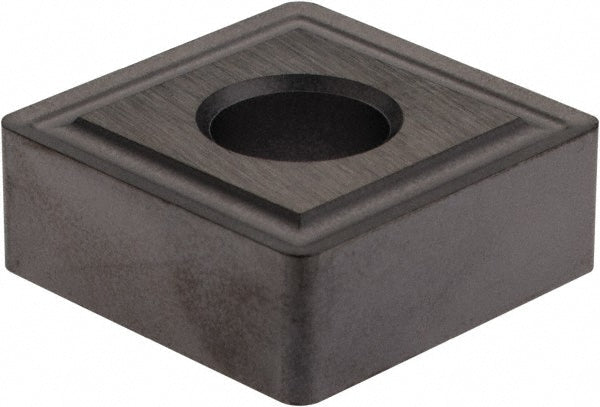

SNMG120408-M1 Carbide Insert, Grade 883 - Seco 00040583
MFR# 00040583ISO/ANSI# SNMP432-M1Series SNMP-M1
$14.25List $18.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade883
MaterialCarbide
Description
The Seco 00040583 is a SNMG120408-M1 carbide indexable insert, grade 883. Suited for superalloys & titanium.
Specifications
Chip breakerM1
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle90
Industry standard numberSNMP432-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMP
Insert thickness in3/16
Iso codeSNMG120408-M1
Lead angle90
Length range0.5000 - 0.6000
Manufacturers catalog number00040583
Manufacturer grade883
Material gradeS10; S20; S30
Maximum depth of cut0.4685
Maximum depth of cut frac in15/32
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
